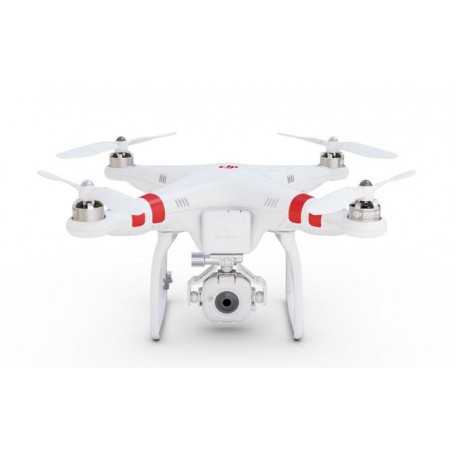

PHANTOM FC 40 DJI FC40

Image Sensor

HD720p/30fps

Resolution

1280 x 720

Lens

Aperture f2.2

FOV

100°

Focal Range

Minimum 9.84” (25cm)

Wireless

IEEE 802.11 b/g Compliant

Wireless Mode

Direct

Preview Video Resolution

WQVGA

Storage

Micro SD up to 64GB (SD/SDHC/SDXC)

Power

Built-in 700mAh Li-ion Battery

Weight

1.34OZ (38g)

ATTRACTIVE AND HIGHLY INTEGRATED DESIGN

A compact and highly integrated design means that it is easier for you to pack it into your backpack. The streamlined design brilliantly reflects the aesthetics of its industrial design and the fantastic visual effects allows you to become the focus of the crowd. Moreover, you can mount a GoPro or other light and handy cameras on your Phantom to shoot some footage from the air which will bring you a brand new travel experience.

READY TO FLY DESIGN

The hardware mounting and software tuning are all done prior to delivery. The Phantom FC40 is ready to fly the moment you unpack it, you just need to add, four AA batteries (remote control) attach propellers, charge the LiPo and install the transmitter batteries before use.

INCLUDES REMOTE CONTROL (JUST ADD 4 X AA)

Phantom FC40 contains a remote controller and receiver, which help the user to completely avoid the inconvenience of purchasing such things. The only thing you need to do is to add TX batteries (4x AA dry cell). The 5.8Ghz ISM frequency makes the effective control distance up to 300 meters (can be impacted by the specific flight environment). The frequency hopping anti-interference design allows multiple remote controllers to work at the same time, and provides a reliable remote communications link.

STABLE, YET AGILE PERFORMANCE, EASY TO FLY

Phantom FC40 has an integrated flight dynamics system, the Naza-M V2 + GPS multi-rotor autopilot system, as well as the dedicated remote controller and receiver. Flight parameters and functions have been setup before delivery, so you can fly your Phantom the moment you receive it. The proven stability of the Naza-M autopilot system allows you to easily achieve great flight performance.

TWO FLIGHT CONTROL MODES, INCLUDING POSITION HOLD

With the built-in Naza-M V2 autopilot system plus a GPS module, the Phantom has GPS Attitude and Attitude Control Mode. Pilots can switch between the two modes to achieve a particular flight experience.

INTELLIGENT ORIENTATION CONTROL (IOC)

Phantom FC40 also has the Intelligent Orientation Control (IOC) function of the Naza-M autopilot system. Usually, the forward direction of a flying multi-rotor is the same as the nose direction. By using Intelligent Orientation Control (IOC), wherever the nose points, the forward direction has nothing to do with nose direction: In course lock flying, the forward direction is the same as a recorded nose direction. In home lock flying, the forward direction is the same as the direction from home point to the multi-rotor.

FAILSAFE & AUTO GO HOME/LANDING

Phantom FC40 has the failsafe function of the Naza-M V2 autopilot system. This means when the communication between the Main Controller and the transmitter is disconnected, the outputs of all command sticks from controller will go to the center position. If the GPS signal is good enough, the system will automatically trigger Return To Home and will land safely.

LOW VOLTAGE PROTECTION

Phantom FC40 includes two levels of low voltage protection, a function of the Naza-M V2 autopilot system. It prevents your multi-rotor from crashing or other harmful consequences caused by low battery voltage. In the first level of protection, the LED indicator blinks red to warn you. In the second level protection the system will trigger the Phantom to land automatically.

MAXIMUM FLIGHT SPEED 10 M/S

The maximum horizontal flight speed of the Phantom FC40 can reach 10m/s and the maximum vertical speed is 6 m/s. The perfect combination of speed and stability allows you to experience the glamor of the Phantom FC40.

HIGH INTENSITY LED LIGHTS TO AID ORIENTATION DURING FLIGHT

10 TO 15 MINUTES OF FLIGHT TIME

Phantom FC40 includes a 3S LiPo battery (with the capacity of 2200mAh, weight only 170g) and a balance charger. With the all-in-one design and light airframe, the flying time could last 10 to 15 minutes which will give you a more extensive flight experience.
