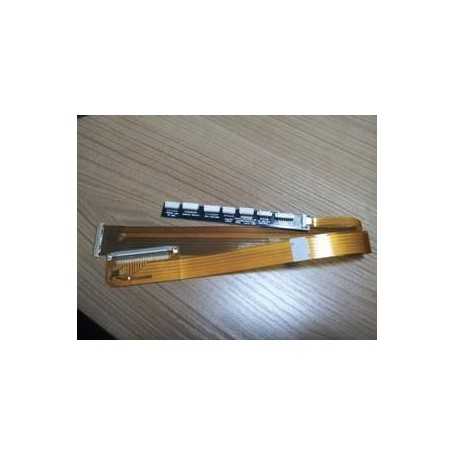

Cavo per adattare 15.6'' 30pin LCD CCFL a LED 40pin

Permette di montare un display di tipo LED su vecchi notebook dotati di display LCD.

Description:
100% brand new and high quality
Converter cable 40pins to 30pins
Coverter you LED screen to LCD screen
With IC and possess strong compatibility
Almost suitable for all 15.6" screen
Work with :
HP OQ60, HP 621, HP 860, HP 4520, HP DV6, HP DV9, HP CQ60, HP G60, Acer 5516, Acer 5735, Acer 5737, Acer 5738, Acer 5552, Acer 5734Z, Asus K52C, Sony 7184, Sony NW20, Dell 1545, Samsung R516, Samsung R517, Toshiba 1500, Toshiba A130, Toshiba A135, Toshiba A136, Toshiba L455, Toshiba L505 and so on.

Package includes:
1 X Screen Converter Cable

What are ports A to G compatible with?

     A     TOSHIBA   L505

           HP 4520

Laptop cable has a 6-pin-connector while the port has a 7-pin-connector, then how to do? Ok, just insert the cable into the hole's leftmost side(insert where the arrow points). HP4520 can be inserted in a very normal way.

     B   SAMSUNG R522/R529

     C   SUMSUNG R516/R517

     D     DELL 1545/A860

     E     SONY 7184 NW20EF

     F     TOSHIBA A130/A135/L455

            ACER   5552/5516/5734Z

            HP621    LENOVO G555 (password data of laptop is needed to be burned(input) into our products before the products are used in this laptop model)

         G     HP G60/DV6

               ASUS K52C

         H     HP CQ60/ ACER 5735

2.        Introduction

Before using our products, firstly, you need to remove the original screen and inverter(high-voltage bar) from your laptop. Secondly, connect the 15.6" LED with our converter, in the meantime, the cable from laptop should be connected with our converter's connector(each pin on this connector stays 1mm away from the next one).Thirdly, connect the position where the inverter once connected with port on our converter's PCB board. You can read compatible laptop models written on the board while you connect them. Then, congratulations, you can use your laptop now.

3.        Instruction

Fasten cables inside laptop avoiding short circuits. Especially, there is 5-21V DC voltage on some pins of the PCB board when laptop works.

Yellow FPC cable can be folded as you require without harming its usage. But folding the cable repeatedly back and forth is not recommended for it will have bad impacts on converter's circuit.

if you only see a black screen without image or you cannot move into operation system after connecting the screen to electricity ,that means you need to input laptop data into the converter.

Our products can be directly burned with password data without doing the same to LED screen. Our products widely support the work of all models of password-burning devices. Especially, we can avoid the troubles and harms when doing the burning job on CHIMEI N156BGE.

Dell password data has already been preset into our products. And many motherboards can directly works without reading password serial number.
