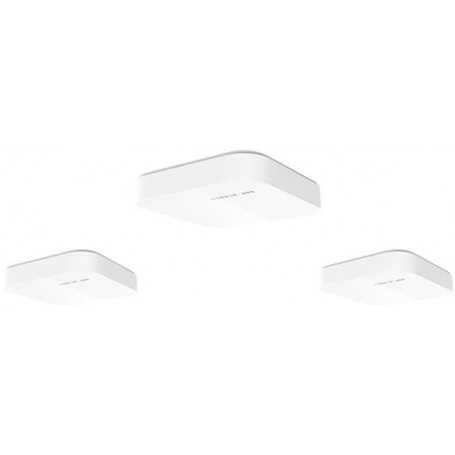

IP-COM AC1200 Enterprise Mesh Wi-Fi System Access Point 3 pz EOL
In-Store Advertising
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Descrizione
EW9+EP9x2
AC1200 Enterprise Mesh Wi-Fi System
- True Mesh technology，Access Point connect each other ,we only need one accesss cable in the whole Mesh system
- Support local management, remote management, network troubleshooting based on the APP ,achieving network maintenance remotly
- Built-in Portal authentication server enables the WEB authentication, account-password authentication, and SMS authentication
- Supports four installation modes, Support router and bridge (AP) deployment modes to adapt to multiple scenarios
- Support 1200M 11AC Wave 2
- Built-in omnidirectional antenna design and Beamforming+ technology make the signal in the system stable and reliable,Support Seamless Roaming
| Datasheet prodotto: | EW9 | EP9 |
| Hardware | ||
|---|---|---|
| Frequency | Dua-Band：2.4G+5G | Dual-Band：2.4G+5G |
| Wireless Rate | 300+867Mbps | 300+867Mbps |
| 11AC Wave 2 | support | support |
| Beamforming | support | support |
| Networking Technology | True Mesh | True Mesh |
| Antenna | 4*4dBi, Horizontal omnidirectional antenna | 4*4dBi, Horizontal omnidirectional antenna |
| Interface | 1*Power Port, 1*Reset button, 4*Gigabit Port | 1*Power Port,1*Reset button |
| Software | ||
| WAN Ports | dual WAN | - |
| QoS | support | support |
| Seamless Roaming | support | support |
| Installation and Deployment | ||
| Mounting | wall mount/ceiling mount/pole mount/desk mount | wall mount/ceiling mount/pole mount/desk mount |
| APP Installation and Configuration | support | support |
| Route Mode and Bridge Mode | support | support |
| Numers for Products | Max：9 | Max：9 |
| Management and Maitainance | ||
| APP Management | support | support |
| Authentication Access | ||
| Local Certifiication | support | support |
| Other | ||
| Dimensions | Product：170*170*36mm Packing：260*175*55mm | Product：170*170*36mm Packing：260*175*55mm |
| Packing List | Bracketx1, Boltx4、Expansion sleevex4, Expansion scewx4, Ribbonx2 | Bracketx1, Boltx4、Expansion sleevex4, Expansion scewx4, Ribbonx2 |
| Packing Quantities | 20 | 20 |
| Power Dimensions | External switching power supply 12V/1A | External switching power supply 12V/1A |
True Mesh
IP-COM EW9+EP9 products apply True Mesh technology, the devices can fulfill plug and play, self-discovery, self-configutation and self-networking. Free your wire, free your hands.
1200M 11AC Wave 2 Wi-Fi
Using 802.11 ac Wave 2 MU (MIMO) technology, faster your surfing experence and strongly improve the capacity.
Omni Antenna Design
IP-COM Mesh wifi products use innovative signal design, built-in antennas combine with beam forming technology, focus signal on the user's location, greatly improved the quality of the wireless coverage.
Seamless Roaming
Mesh network supports seamless roaming, when wireless users roaming among multiple nodes, the system can maintain the user`s IP address information and keep the certification status, user roaming from node A to node B rapidly, roaming speed < 50 ms, the users can feeling nothing in the surfing experience .
APP Management
IP-COM mesh products support APP cloud management, the management and maintenance of devices can be realized through mobile APP. By using ip-com cloud account login, the APP can be managed and maintained remotely.
Smart Bandwidth Management
With the intelligent bandwidth management technology (QoS), the device will adjust the bandwidth intelligently according to the utilization rate of the bandwidth and the network application.
Dual WAN capacity
All gigabit network port design, provides 2 WAN\LAN turntable ports and 2 fixed LAN ports, it can flexibly match the number of network ports according to the actual network demand and meet the actual application network demand. In dual WAN network, WAN port bandwidth will be automatically superimposed and load balanced.
Captive Portal
Built-in multiple authentication management systems, authentication based on Portal, can completely solve the problem of traditional wireless password sharing by WiFi sharing software, network being rubbed, and internal network data being stolen.
One key authentication: authentication based on Portal, customizable Portal push page, users don`t need account and password to access to the Internet.
WEB Account password authentication: based on Portal authentication, the Portal push page can be customized, and users need to verify account and password to access to the Internet.
SMS authentication: based on Portal authentication, the Portal push page can be customized. Users need to enter their mobile phone number and pass the authentication before they can access the Internet.
Diversity Founction Mount Bracket
Combined with easy mounting bracket and fittings, four installation modes can be realized: wall mount/ceiling mount/pole mount/desk mount.
